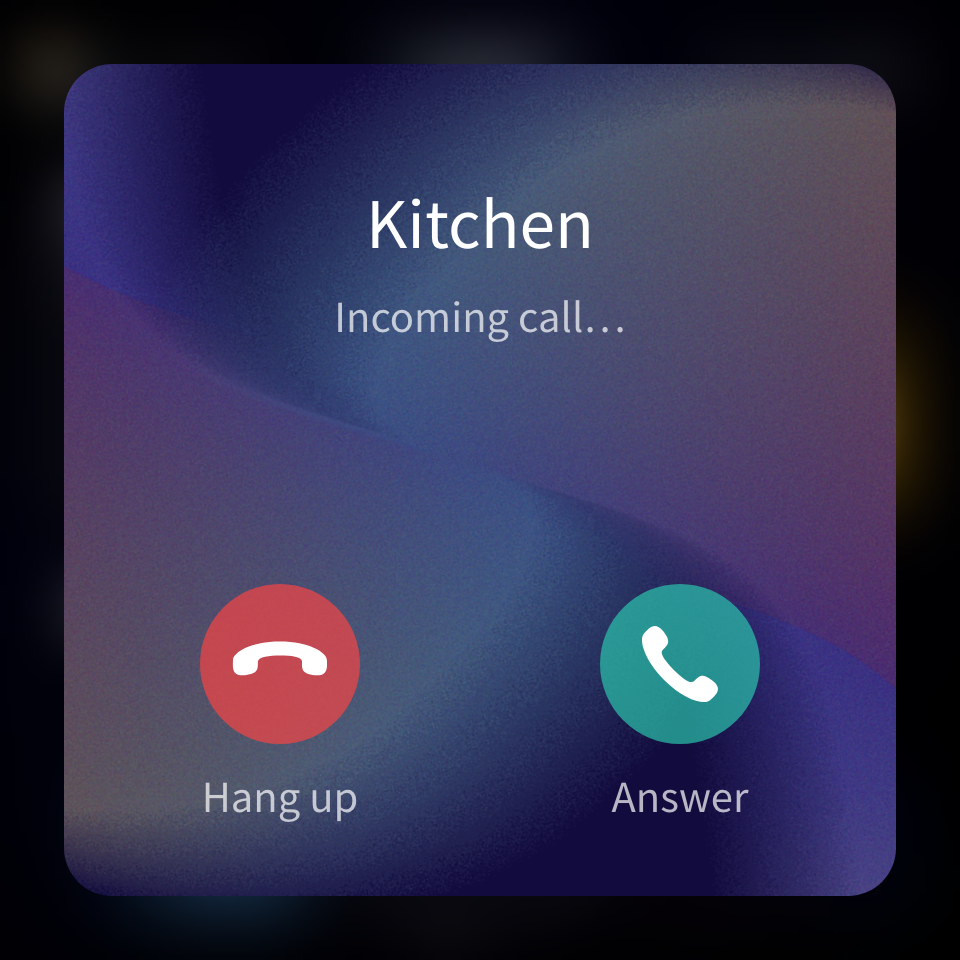

Source Mini is a 4-inch smart center control panel with a screen resolution of 480*480. It is equipped with HDL LINK system and can be used with different protocol interfaces to integrate Buspro/KNX/Zigbee device control. This device integrates switch, dimmer, curtain, scene, color temperature, color control (RGB), background music, air conditioning, floor heating, fresh air, etc.. It not only supports the control status display of devices and scenes, but also supports a variety of sensors such as human proximity sensing, illumination detection, temperature and humidity detection, etc., to meet most of the daily applications. It supports wired and wireless network access, video intercom calls, screen-to-screen indoor voice calls and other common functions, and can also support screen saver, manual immediate sleep, home page favorites, card sorting and other functions.

Key Functions:

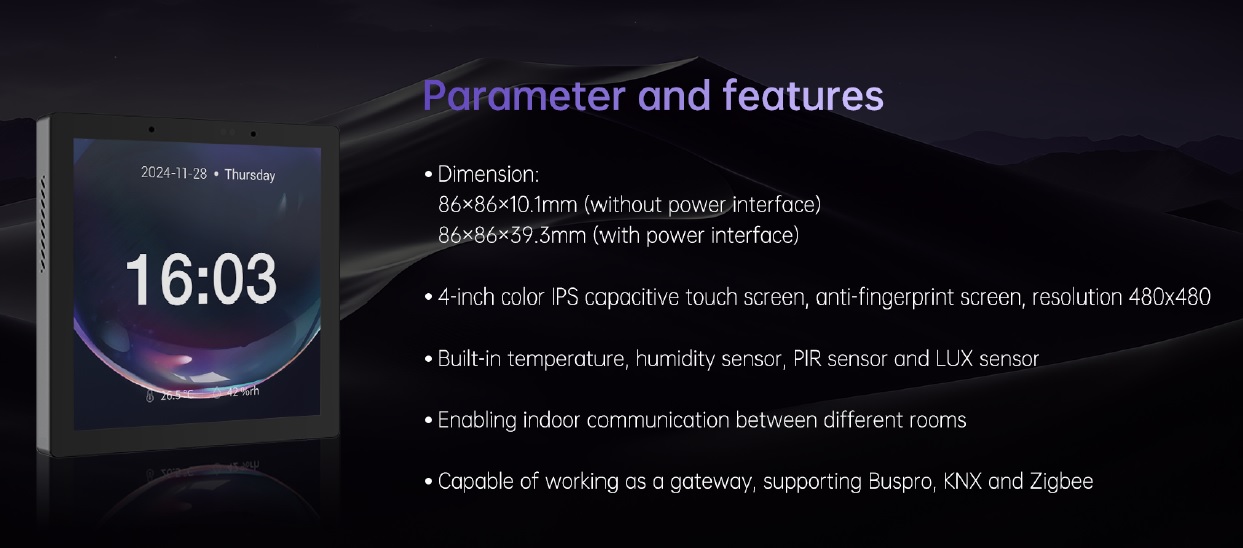

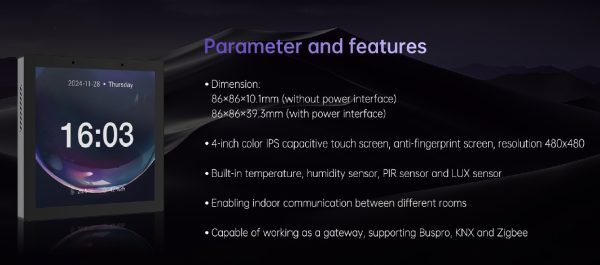

1. 4-inch color IPS capacitive touch screen, anti-fingerprint screen, resolution 480×480

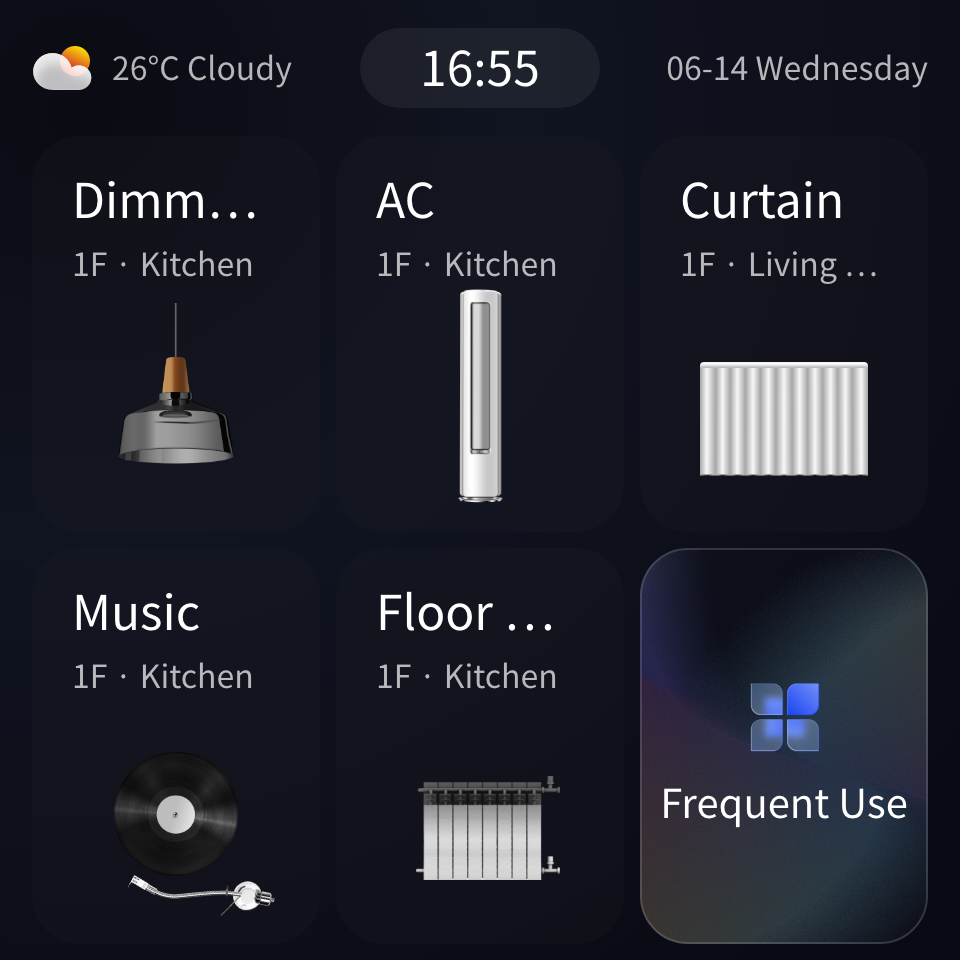

2. Home page function, support device and scene shortcut favorite card control, as well as weather and time display

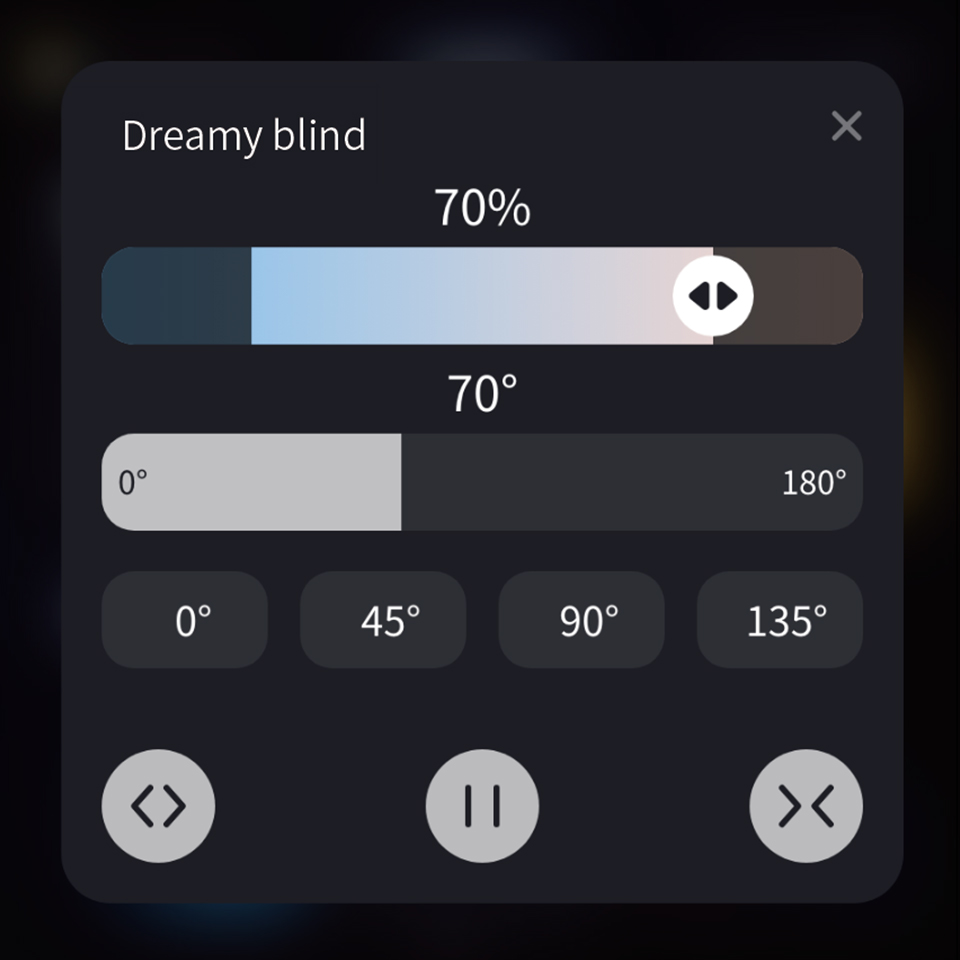

3. Basic control functions, including switch, dimming, curtains, scenes, etc.; and other control functions, including color,

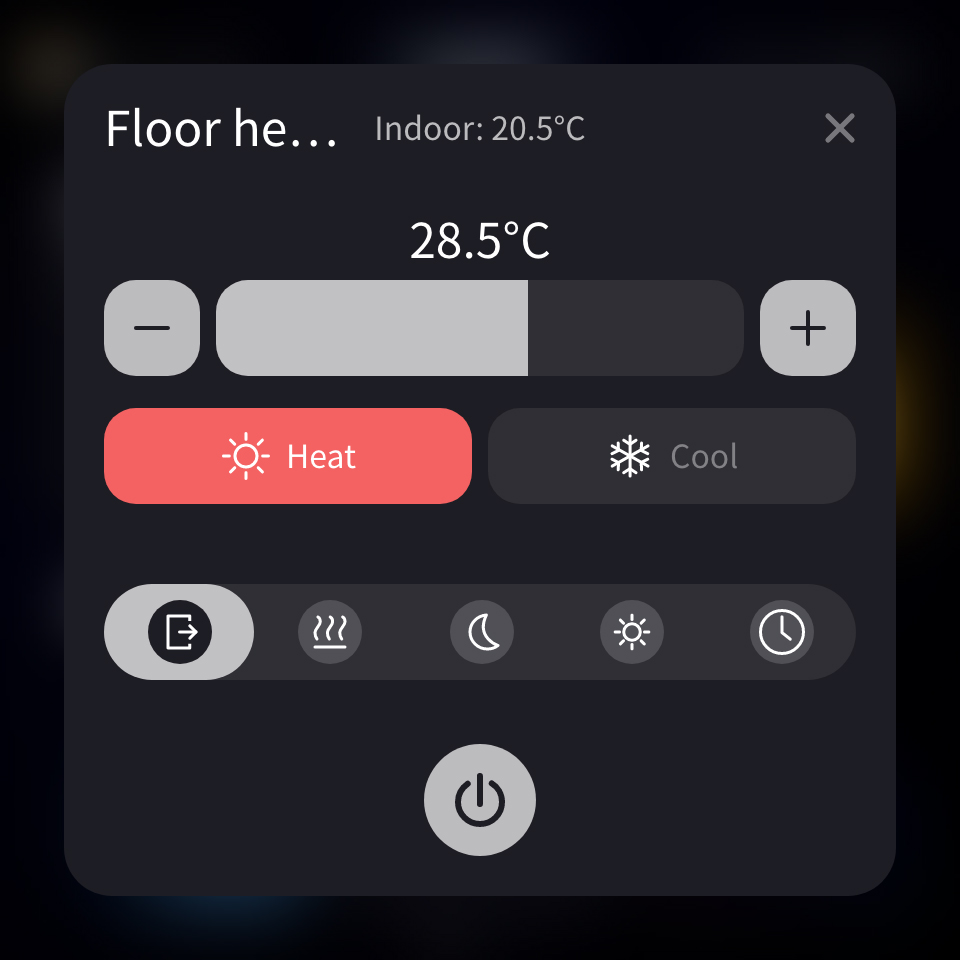

color temperature, background music control, environmental control (air conditioning, floor heating, fresh air)
4. Gateway function, supports multi-gateway cross-drive control, mixed networking (when using the gateway function, you
need to connect the device to a wired network)
5. Built-in temperature and humidity sensors, automatically detect the temperature and humidity of the current installation
location of the device
6. Built-in human proximity sensor and light sensor, to realize automatic screen sleep, the human proximity wake-up and automatic screen brightness adjustment
